Hot Air sealing machine . Can store sealing parameters for differer garment styles , to achieve standardized production . With up and down wheel speed gap , significantly improve wrinkle problem for curve position or elastic fabric . Digized air pressure readout display . PLC assembly in one , fast troubleshooting

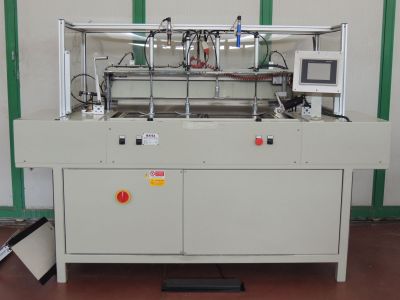

Unit 1060 is a unique machine that offers ultimate precision when it comes to trim the centre of striped or plaid shirts .In fact , the machine centres the font panel , the buttonholes of the button side , with the help of lasers which allow a perfect placement for perfect alignment . The cut is made with a cobalt blade cutter . The 1060 is equipped with a stacker at the back to pile up the second half that the operator has to trim in a second time .
This machine was designed for manufacturers who are looking for high quality result in a schort time . This is achieved by folding the sleeve plackets , wich are ready to be perfectly placed on the sleeve for a quicker stittching . The sleeve plankets are folded with the support of vacuum system and tey're pressed by pair , allowing to match the plaids , tripes etc. between the left end the right side of the same shirt .The machine is equipped with a stacker at the back , witch gives more time to the operator who only needs to feed the machine instead of taking them back after each cycle . The dies can be easily changed , allowing different possible applications for this machine like gussets , for example .
The 1005 unit will fold front and half sleeves, using a vacuum and pressing system which allow complete prcision on the entire leght of the crease . After placing the piece with the help of references points , the vacuum system will hold it in arder for the operator to fold perfectly the remaining part : Please note that an adhesive system can be added to the machine , if needed . Than , a blowing system will help sending the shirt under the pressing plates for the creasing part . The width can be adijusted from 18 mm to 70 mm as well as the lenght , that goes up to 900 mm .The cleaning of the suction plates is fast and easy . The machine is also equipped with a stecker at the back , which hepls the operator to not waste time after each cycle .
This machine was created to work , no matter how hight the operator's capacity to feed the machine may be . The cuff must be reversed manually by the operator and put on the axpandable and interchangeable plate , ehere iy will be positioned automatically . The cuff will then go into the machine between two heated conveyors where iy will be heated and also fused , according to the pre-cycle . Onc completed , the cuff is automatically ironed and plasticized by a heated plate and brought to the stacker , where it will cool until the operator collects all the finisched cuffs . The patented unit is also equipped with a PLC to regulate the work of cycle mthrought a touch-screen ( time and temperture ) based on the material type .
